Hose Spiral Guard

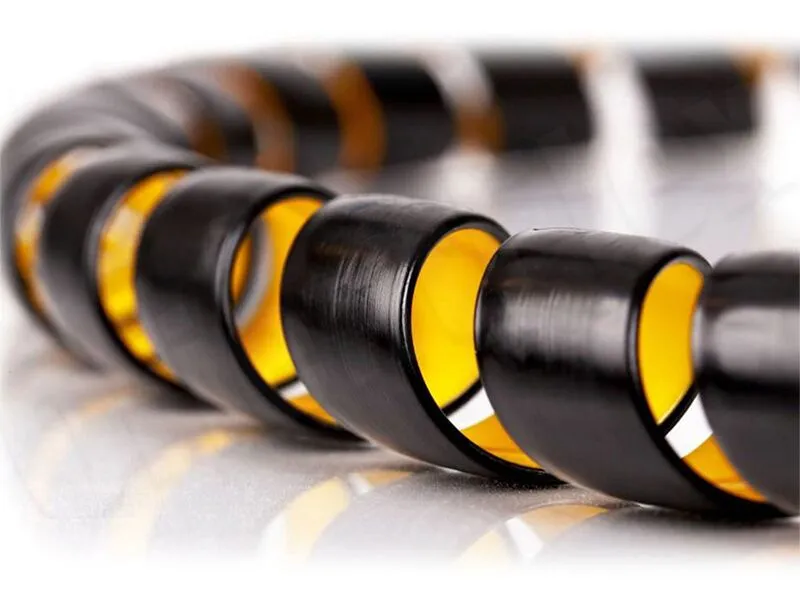

Spiral guard is a kind of hydraulic hose protectors which is made of polypropylene. It can effectively protect the hydraulic hose from the external impact and friction. Then such hose wrap can prolong the service life of hydraulic hoses.
- Product Categories
- PVC Hose
- PVC Layflat Hose
- PVC Steel Wire Hose
- PVC Suction Hose
- PVC Braided Hose
- PVC Garden Hose
- PVC Clear Hose
- PVC Air Hose
- PVC Gas Hose
- PVC Spray Hose
- PVC Washer Hose
- Industrial Hose
- Industrial Water Hose
- Industrial Air Hose
- Industrial Oil Hose
- Food Grade Hose
- Chemical Hose
- Composite Hose
- Material Handling Hose
- Paint Spray Hose
- Welding Hose
- Steam Hose
- Hydraulic Hose
- Auto Rubber Hose
- Silicone Heater Hose
- Silicone Straight Hose
- Corrugated Silicone Hose
- Silicone Hump Hose
- Silicone Elbow Hose
- Silicone T Hose
- OEM Silicone Hose
- Silicone Braided Hose
- Silicone Vacuum Hose
- Auto Silicone Hose
- Pneumatic Hose
- Fire Hose
- Duct Hose
- Tunnel Ventilation Duct
- Silicone Duct
- PU Duct Hose
- PU Helix Duct Hose
- PVC Duct Hose
- PVC Helix Duct Hose
- Nylon Duct
- High Tem Duct Hose
- Industrial Hose Fittings
- Hose Sleeve
The special structure of spiral guard makes it have high tensile strength and good elasticity. Then it can effectively wrap the hydraulic hose and protect it.
In some harsh working conditions, the hydraulic hose may wear with other objects. While in some cases, hydraulic hose may get the impact from enternal force. On these occasions, a spiral guard wrap can effectively protect the hydraulic hose from these effects. What’s more, it can protect the hose from the effect of ozone, UV and static.
Spiral Guard Advantages
The plastic spiral hose protector with different colors can not only makes your hose looks more beautiful, but also prolong its service life. According to the test, a hydraulic hose with a spiral hydraulic hose protector can serve 3 more years.
Compared to traditional spring sleeve, spiral hose protector is more easier to install. Besides, the abrasion resistance is more better. In addition, it has great aging and corrosion resistance.
Spiral Guard Standard Duty Specification
| O.D | I.D | Thickness | Standard Length | Carton size | Applied for hose O.D |
| mm | mm | mm | m | cm | mm |
| 12 | 9.6 | 1.2 | 61 | 35*35*30 | 10-13 |
| 16 | 13.6 | 1.2 | 61 | 35*35*30 | 14-17 |
| 20 | 17 | 1.5 | 61 | 45*45*30 | 17-21 |
| 25 | 21 | 2 | 61 | 45*45*30 | 22-27 |
| 32 | 28 | 2 | 61 | 55*55*36 | 28-35 |
| 40 | 35 | 2.5 | 61 | 60*60*42 | 36-45 |
| 50 | 44 | 3 | 30.5 | 70*70*35 | 46-56 |
| 63 | 57 | 3 | 30.5 | 70*70*70 | 57-67 |
| 75 | 68 | 3.5 | 22.5 | 70*70*70 | 68-81 |
| 90 | 82 | 4 | 15 | 70*70*70 | 82-100 |
| 110 | 101 | 4.5 | 15 | 70*70*70 | 101-114 |
| 125 | 116 | 4.5 | 12 | 70*70*70 | 115-127 |
| 140 | 130 | 5 | 12 | 70*70*70 | 127-145 |
Spiral Guard Heavy Duty Specification
| O.D | I.D | Thickness | Standard Length | Carton size | Applied for hose O.D |
| mm | mm | mm | m | cm | mm |
| 12 | 9 | 1.5 | 61 | 35*35*30 | 10-13 |
| 16 | 13 | 1.5 | 61 | 35*35*30 | 14-17 |
| 20 | 16 | 2 | 61 | 45*45*30 | 17-21 |
| 25 | 20.6 | 2.2 | 61 | 45*45*30 | 22-27 |
| 32 | 27 | 2.5 | 61 | 55*55*36 | 28-35 |
| 40 | 34.4 | 2.8 | 61 | 60*60*42 | 36-45 |
| 50 | 43.6 | 3.2 | 30.5 | 70*70*35 | 46-56 |
| 63 | 56 | 3.5 | 30.5 | 70*70*70 | 57-67 |
| 75 | 66 | 4.5 | 22.5 | 70*70*70 | 68-81 |
| 90 | 81 | 4.5 | 15 | 70*70*70 | 82-100 |
| 110 | 100 | 5 | 15 | 70*70*70 | 101-114 |
| 125 | 114 | 5.5 | 12 | 70*70*70 | 115-127 |
| 140 | 127 | 6.5 | 12 | 70*70*70 | 127-145 |
