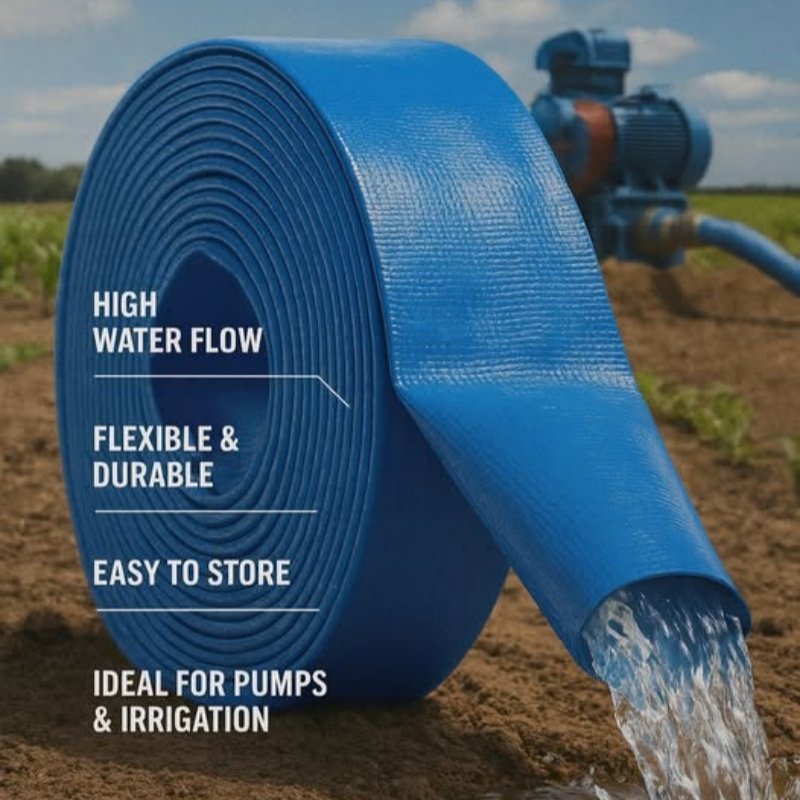

PVC Layflat Hose, commonly referred to as Reinforced PVC Water Hose, water discharge hose, Durable Layflat Tubing, delivery hose, pump hose and flat hose,etc. It is one of the most popular water discharge hose for both civil use and industrial use.

Product Categories
PVC Hose
- PVC Layflat Hose
- PVC Steel Wire Hose
- PVC Suction Hose
- PVC Braided Hose
- PVC Garden Hose
- PVC Clear Hose
- PVC Air Hose
- PVC Gas Hose
- PVC Spray Hose
- PVC Washer Hose
Industrial Hose
- Industrial Water Hose
- Industrial Air Hose
- Industrial Oil Hose
- Food Grade Hose
- Chemical Hose
- Composite Hose
- Material Handling Hose
- Paint Spray Hose
- Welding Hose
- Steam Hose
Hydraulic Hose
Auto Rubber Hose
- Silicone Heater Hose
- Silicone Straight Hose
- Corrugated Silicone Hose
- Silicone Hump Hose
- Silicone Elbow Hose
- Silicone T Hose
- OEM Silicone Hose
- Silicone Braided Hose
- Silicone Vacuum Hose
Auto Silicone Hose
Pneumatic Hose
Fire Hose
Duct Hose
- Tunnel Ventilation Duct
- Silicone Duct
- PU Duct Hose
- PU Helix Duct Hose
- PVC Duct Hose
- PVC Helix Duct Hose
- Nylon Duct
- High Tem Duct Hose
Industrial Hose Fittings
Hose Sleeve

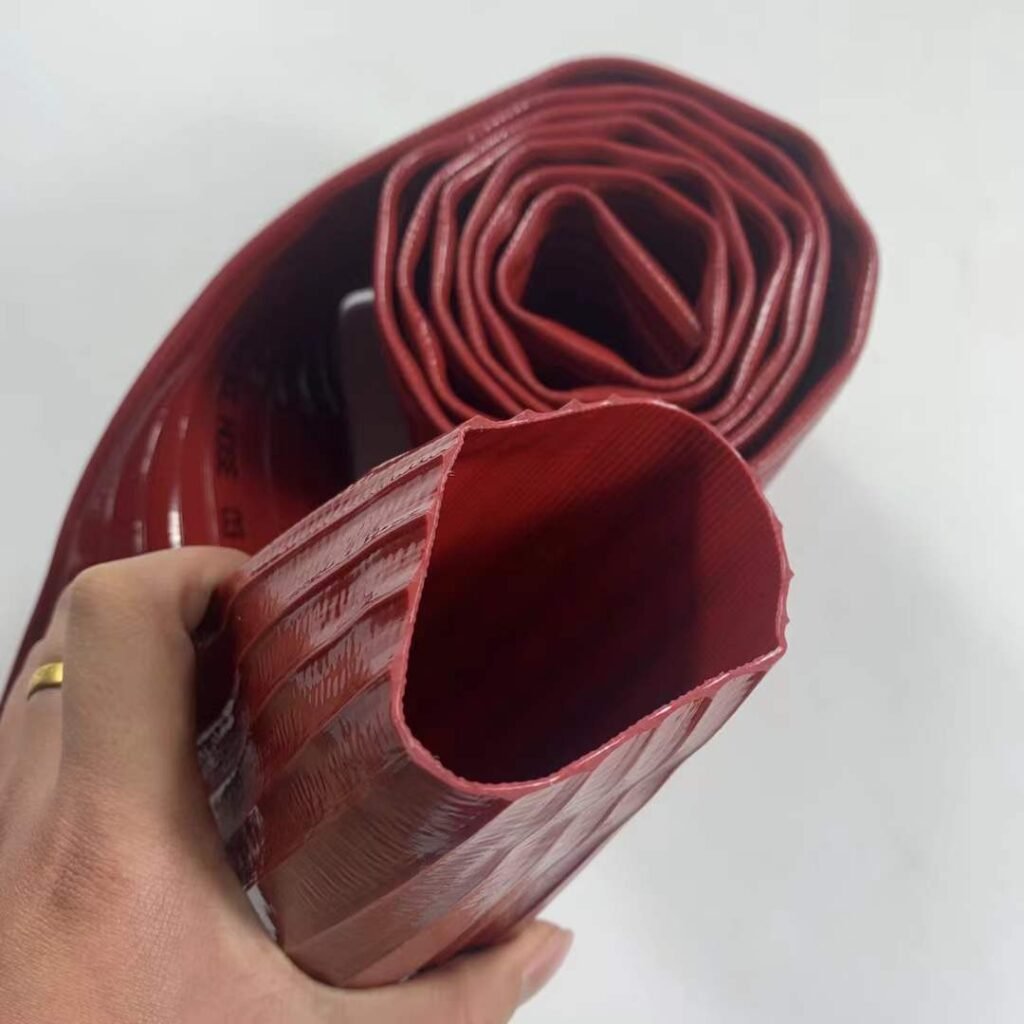

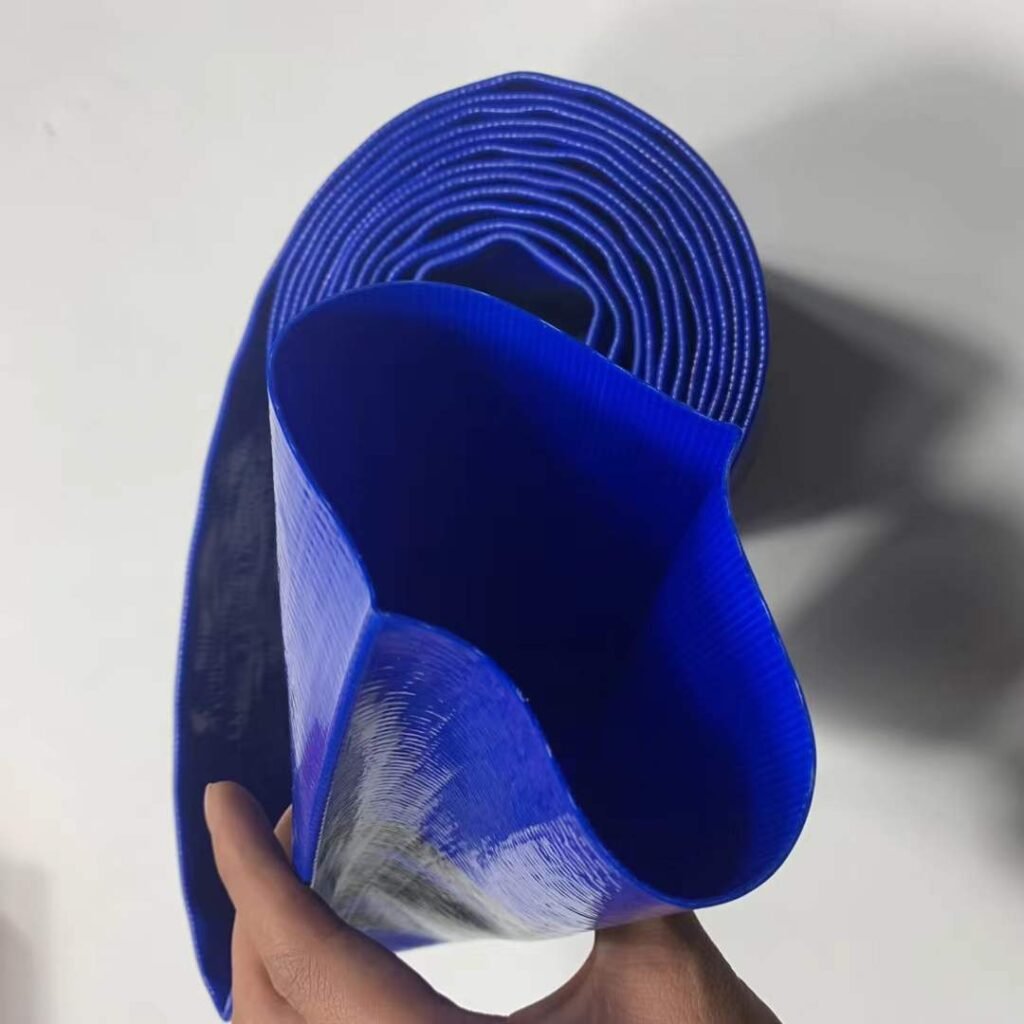

PVC Layflat Hose Structure

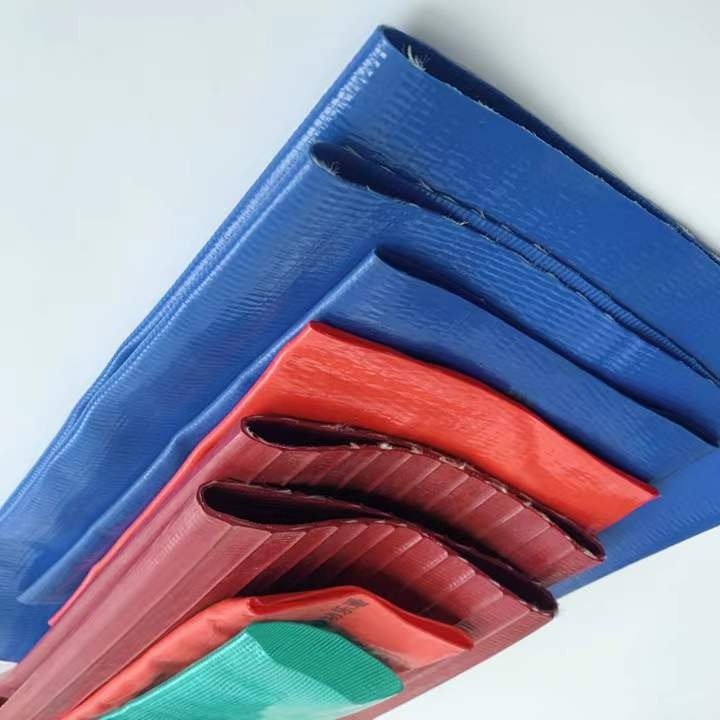

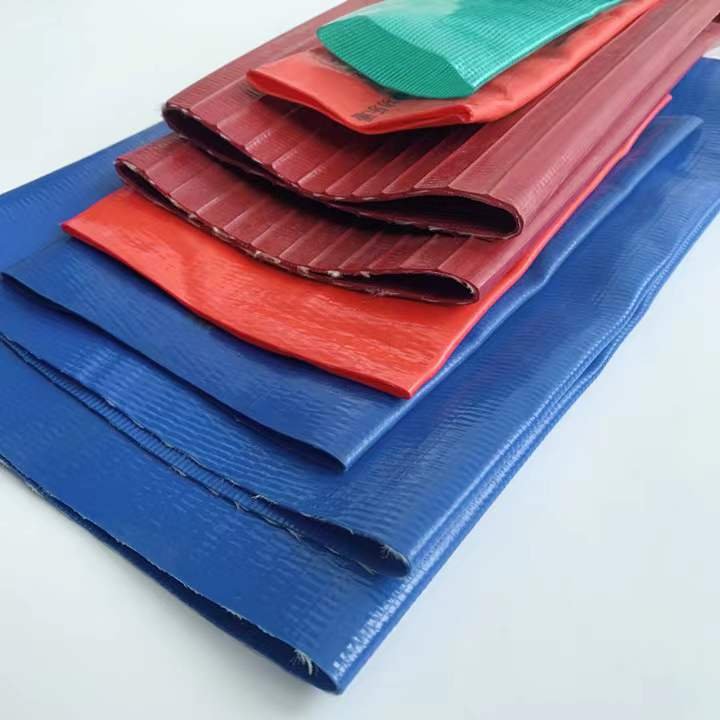

Tube & Cover: PVC Blue, Red, Yellow,Green,Black, etc

Reinforcement: High tensile polyester braiding

Temperature: -10℃ to +60°C ( -50℉ to +140℉)

ZJhose PVC Layflat Hose is the most cost-effective choice for water, light chemicals, and fluids in industry, agriculture, irrigation, mining, and construction.

Features:

Lightweight, good flexibility
Corrosion & aging resistant
Nontoxic, odourless
Burst pressure 3x working pressure
Easy to handle & store

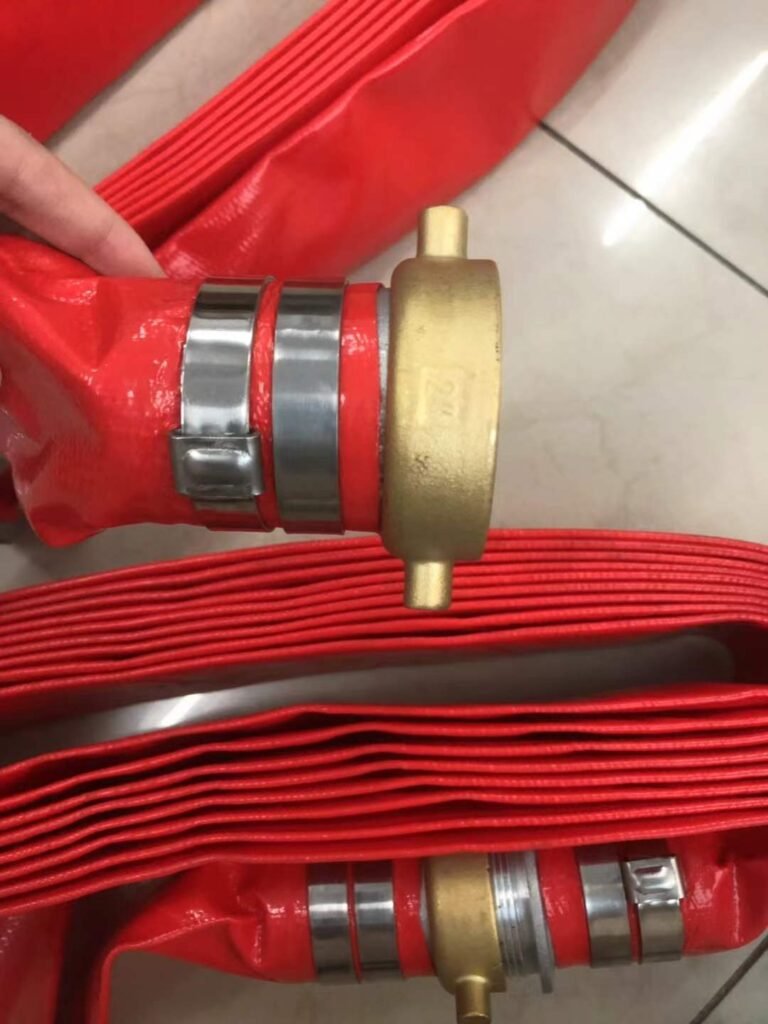

Customizable lengths & assemblies

Application: Used for irrigation, water pumps, pools, construction, mining, and marine. Proven in African mining & agriculture projects.

Product Parameters

Discharge Tubing Light Duty

ID		WP		BP		Length
inch	mm	psi	bar	psi	bar	m/roll
3/4″	20	30-45	2-3	90-135	6-9	100
1″	25	30-45	2-3	90-135	6-9	100
1-1/4″	32	30-45	2-3	90-135	6-9	100
1-1/2″	38	30-45	2-3	90-135	6-9	100
2″	51	30-45	2-3	90-135	6-9	100
2-1/2″	64	30-45	2-3	90-135	6-9	100
3″	76	30-45	2-3	90-135	6-9	100
4″	102	30-45	2-3	90-135	6-9	100
5″	127	30-45	2-3	90-135	6-9	50
6″	153	30-45	2-3	90-135	6-9	50
8″	203	30-45	2-3	90-135	6-9	50
10″	254	30-45	2-3	90-135	6-9	50
12″	305	30-45	2-3	90-135	6-9	50

Layflat Discharge Hose Standard Duty

ID		WP		BP		Length
inch	mm	psi	bar	psi	bar	m/roll
3/4″	20	58	4	218	15	100
1″	25	58	4	218	15	100
1-1/4″	32	58	4	218	15	100
1-1/2″	38	58	4	218	15	100
2″	51	58	4	174	12	100
2.5″	64	58	4	174	12	100
3″	76	58	4	174	12	100
4″	102	58	4	174	12	100
5″	127	58	4	174	12	100
6″	153	58	4	174	12	100
8″	203	58	4	174	12	100

Flat Discharge Hose Medium Duty

ID		WP		BP		Length
inch	mm	psi	bar	psi	bar	m/roll
3/4″	20	87	6	305	21	100
1″	25	87	6	305	21	100
1-1/4″	32	87	6	305	21	100
1-1/2″	38	87	6	305	21	100
1-1/2″	40	87	6	261	18	100
2″	51	87	6	261	18	100
2.5″	64	87	6	261	18	100
3″	76	87	6	261	18	100
4″	102	87	6	261	18	100
5″	127	87	6	261	18	100
6″	153	87	6	261	18	100
8″	203	87	6	261	18	100

Heavy Duty Lay Flat Hose

ID	WP	BP	Length
inch	mm	psi	bar	psi	bar	m/roll
3/4″	20	145	10	435	30	50
1″	25	145	10	435	30	50
1-1/4″	32	145	10	435	30	50
1-1/2″	38	145	10	435	30	50
1-1/2″	40	145	10	435	30	50
1-3/4″	45	145	10	435	30	50
2″	51	116	8	348	24	50
2″	51	145	10	435	30	50
2.5″	64	145	10	435	30	50
3″	76	116	8	348	24	50
3″	76	145	10	435	30	50
4″	102	116	8	348	24	50
4″	102	145	10	435	30	50
6″	153	116	8	348	24	50
8″	203	87	6	261	18	50

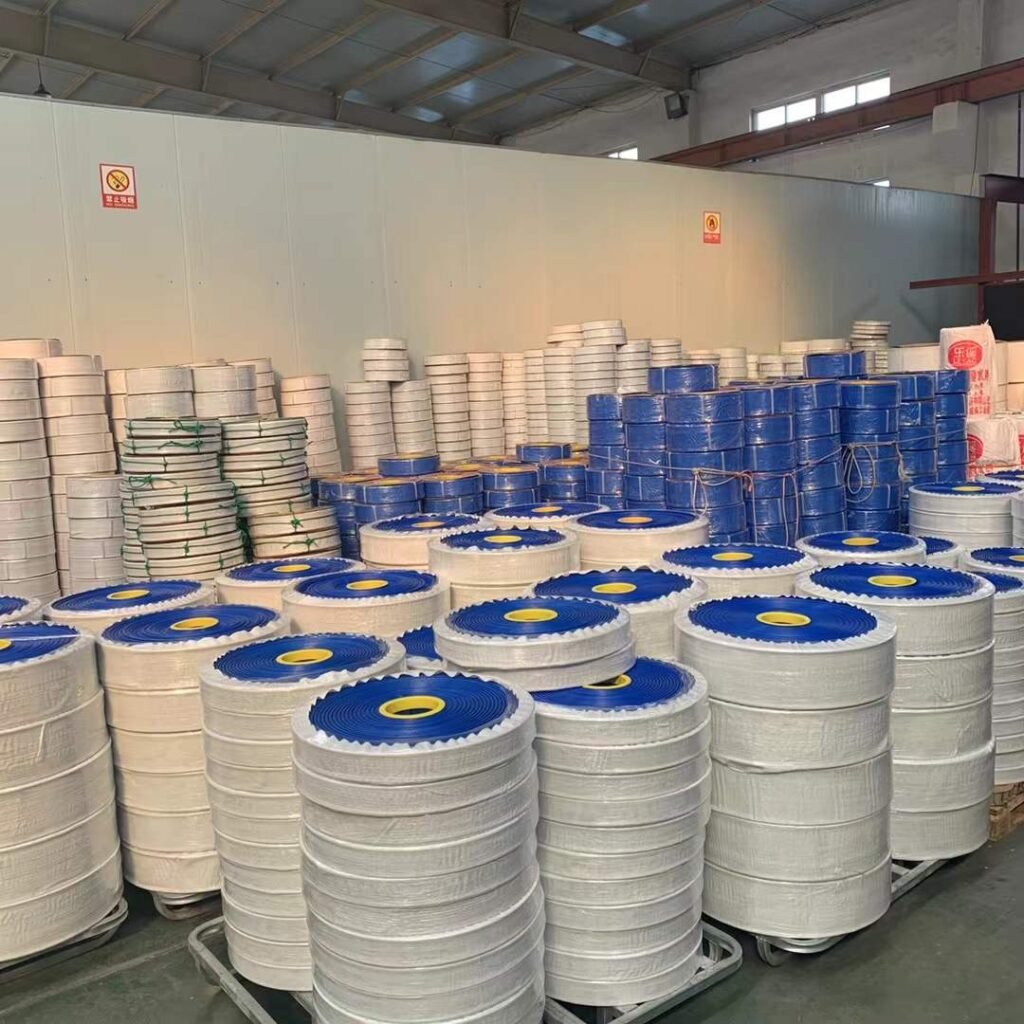

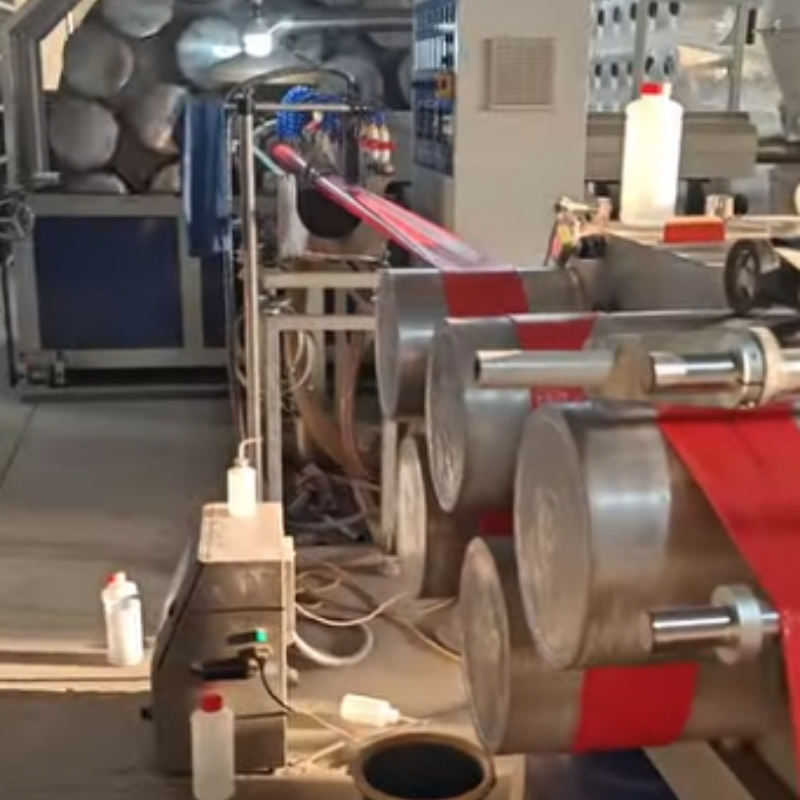

Production Details

ZJhose takes pride in delivering PVC Layflat Hoses that redefine reliability and efficiency. Each hose is precision-crafted with advanced manufacturing and premium raw materials, built to meet the tough demands of industrial and agricultural use.
