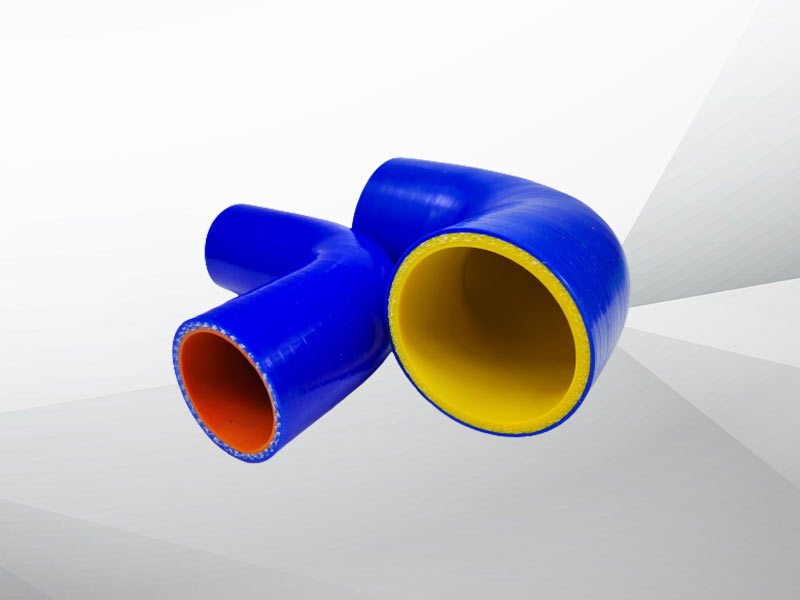

Silicone Elbow Hose
Silicone Elbow Hose
Every ZJhose silicone elbow hose is manufactured from premium-grade silicone rubber, reinforced with high-strength fabric layers to deliver exceptional durability, flexibility, and resistance to thermal degradation, UV exposure, and ozone.
- Product Categories
- PVC Hose
- PVC Layflat Hose
- PVC Steel Wire Hose
- PVC Suction Hose
- PVC Braided Hose
- PVC Garden Hose
- PVC Clear Hose
- PVC Air Hose
- PVC Gas Hose
- PVC Spray Hose
- PVC Washer Hose
- Industrial Hose
- Industrial Water Hose
- Industrial Air Hose
- Industrial Oil Hose
- Food Grade Hose
- Chemical Hose
- Composite Hose
- Material Handling Hose
- Paint Spray Hose
- Welding Hose
- Steam Hose
- Hydraulic Hose
- Auto Rubber Hose
- Silicone Heater Hose
- Silicone Straight Hose
- Corrugated Silicone Hose
- Silicone Hump Hose
- Silicone Elbow Hose
- Silicone T Hose
- OEM Silicone Hose
- Silicone Braided Hose
- Silicone Vacuum Hose
- Auto Silicone Hose
- Pneumatic Hose
- Fire Hose
- Duct Hose
- Tunnel Ventilation Duct
- Silicone Duct
- PU Duct Hose
- PU Helix Duct Hose
- PVC Duct Hose
- PVC Helix Duct Hose
- Nylon Duct
- High Tem Duct Hose
- Industrial Hose Fittings
- Hose Sleeve
Our silicone elbow hoses are made from high-temperature resistant silicone rubber and reinforced with multi-ply knitted polyester fabric, engineered for extreme pressure and temperature conditions. Featuring resistance to heat, UV, ozone, and electrochemical degradation, they offer longer service life than organic materials. For oil/fuel applications, our fluorosilicone variants provide reliable protection. With minimal water absorption, these hoses maintain mechanical strength even after prolonged immersion. Choose from 45°, 90°, 135°, and 180° configurations for your routing needs
Silicone Elbow Hose Features
- High temperature and aging resistant: operative temperature: -40 ℃ ~ 220 ℃
- Physical laziness, good air permeability
- Good electrical insulating performance
- Odourless, nontoxic and eco-friendly
- We offer OEM/ODM, 3D design and produce according to your drawings
Silicone Elbow Hose Application
Product Parameters
Silicone Elbow Hose 45/90 Degree
| ID | Layer | Thickness | Leg Length | ID | Layer | Thickness | Leg Length | ||
| inch | mm | ply | mm | mm | inch | mm | ply | mm | mm |
| 3/8″ | 6 | 3-4 | 4-4.5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 1-2/3″ | 42 | 4 | 4.5-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1/2″ | 8 | 3-4 | 4-4.5 | 1-7/9″ | 45 | 4 | 4.5-5 | ||
| 9/16″ | 10 | 3-4 | 4-4.5 | 1-8/9″ | 48 | 4 | 4.5-5 | ||
| 5/8″ | 12 | 3-4 | 4-4.5 | 2″ | 51 | 4 | 4.5-5 | ||
| 3/4″ | 19 | 3-4 | 4-4.5 | 2-1/8″ | 54 | 4 | 4.5-5 | ||
| 13/16″ | 20 | 3-4 | 4-4.5 | 2-1/4″ | 57 | 4 | 4.5-5 | ||
| 6/7″ | 22 | 3-4 | 4-4.5 | 2-1/3″ | 60 | 4 | 4.5-5 | ||
| 1″ | 25 | 4 | 4.5-5 | 2-1/2″ | 63 | 4 | 4.5-5 | ||
| 1-1/9″ | 28 | 4 | 4.5-5 | 2-5/9″ | 65 | 4 | 4.5-5 | ||
| 1-1/6″ | 30 | 4 | 4.5-5 | 2-3/4″ | 70 | 4 | 4.5-5 | ||
| 1-1/4″ | 32 | 4 | 4.5-5 | 3″ | 76 | 4 | 4.5-5 | ||
| 1-3/8″ | 35 | 4 | 4.5-5 | 3-1/7″ | 80 | 4 | 4.5-5 | ||
| 1-1/2″ | 38 | 4 | 4.5-5 | 3-1/2″ | 89 | 4 | 4.5-5 | ||
| 1-5/8″ | 41 | 4 | 4.5-5 | 4″ | 102 | 4 | 4.5-5 | ||
Silicone Elbow Hose 135 Degree
| ID | Layer | Thickness | Leg Length | ID | Layer | Thickness | Leg Length | ||
| inch | mm | ply | mm | mm | inch | mm | ply | mm | mm |
| 3/8″ | 6 | 3-4 | 4-4.5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc | 1-2/3″ | 42 | 4 | 4.5-5 | 102*102, 125*125, 150*150, 200*200, 250*250, etc |
| 1/2″ | 8 | 3-4 | 4-4.5 | 1-7/9″ | 45 | 4 | 4.5-5 | ||
| 9/16″ | 10 | 3-4 | 4-4.5 | 1-8/9″ | 48 | 4 | 4.5-5 | ||
| 5/8″ | 12 | 3-4 | 4-4.5 | 2″ | 51 | 4 | 4.5-5 | ||
| 3/4″ | 19 | 3-4 | 4-4.5 | 2-1/8″ | 54 | 4 | 4.5-5 | ||
| 13/16″ | 20 | 3-4 | 4-4.5 | 2-1/4″ | 57 | 4 | 4.5-5 | ||
| 6/7″ | 22 | 3-4 | 4-4.5 | 2-1/3″ | 60 | 4 | 4.5-5 | ||
| 1″ | 25 | 4 | 4.5-5 | 2-1/2″ | 63 | 4 | 4.5-5 | ||
| 1-1/9″ | 28 | 4 | 4.5-5 | 2-5/9″ | 65 | 4 | 4.5-5 | ||
| 1-1/6″ | 30 | 4 | 4.5-5 | 2-3/4″ | 70 | 4 | 4.5-5 | ||
| 1-1/4″ | 32 | 4 | 4.5-5 | 3″ | 76 | 4 | 4.5-5 | ||
| 1-3/8″ | 35 | 4 | 4.5-5 | 3-1/7″ | 80 | 4 | 4.5-5 | ||
| 1-1/2″ | 38 | 4 | 4.5-5 | 3-1/2″ | 89 | 4 | 4.5-5 | ||
| 1-5/8″ | 41 | 4 | 4.5-5 | 4″ | 102 | 4 | 4.5-5 | ||
Silicone Elbow Hose 180 Degree
| ID | Layer | Thickness | Centre Line Distance | Leg Length | ID | Layer | Thickness | Centre Line Distance | Leg Length | ||
| inch | mm | ply | mm | mm | mm | inch | mm | ply | mm | mm | mm |
| 3/8″ | 10 | 3-4 | 4-4.5 | 50, 95, 129, etc | 105*105, 150*150, 200*200, etc | 1-3/5″ | 40 | 4 | 4.5-5 | 50, 95, 129, etc | 105*105, 150*150, 200*200, etc |
| 1/2″ | 12 | 3-4 | 4-4.5 | 1-7/9″ | 45 | 4 | 4.5-5 | ||||
| 9/16″ | 14 | 3-4 | 4-4.5 | 1-8/9″ | 48 | 4 | 4.5-5 | ||||
| 5/8″ | 16 | 3-4 | 4-4.5 | 2″ | 51 | 4 | 4.5-5 | ||||
| 3/4″ | 18 | 3-4 | 4-4.5 | 2-1/8″ | 54 | 4 | 4.5-5 | ||||
| 3/4″ | 19 | 3-4 | 4-4.5 | 2-1/4″ | 57 | 4 | 4.5-5 | ||||
| 13/16″ | 20 | 3-4 | 4-4.5 | 2-1/3″ | 60 | 4 | 4.5-5 | ||||
| 6/7″ | 22 | 3-4 | 4-4.5 | 2-5/9″ | 65 | 4 | 4.5-5 | ||||
| 1″ | 25 | 4 | 4.5-5 | 2-3/4″ | 70 | 4 | 4.5-5 | ||||
| 1-1/9″ | 28 | 4 | 4.5-5 | 3″ | 76 | 4 | 4.5-5 | ||||
| 1-1/6″ | 30 | 4 | 4.5-5 | 3-1/7″ | 80 | 4 | 4.5-5 | ||||
| 1-1/4″ | 32 | 4 | 4.5-5 | 3-1/2″ | 89 | 4 | 4.5-5 | ||||
| 1-1/2″ | 38 | 4 | 4.5-5 | 4″ | 102 | 4 | 4.5-5 | ||||
Production Details
Our silicone Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive silicone hose solutions.
