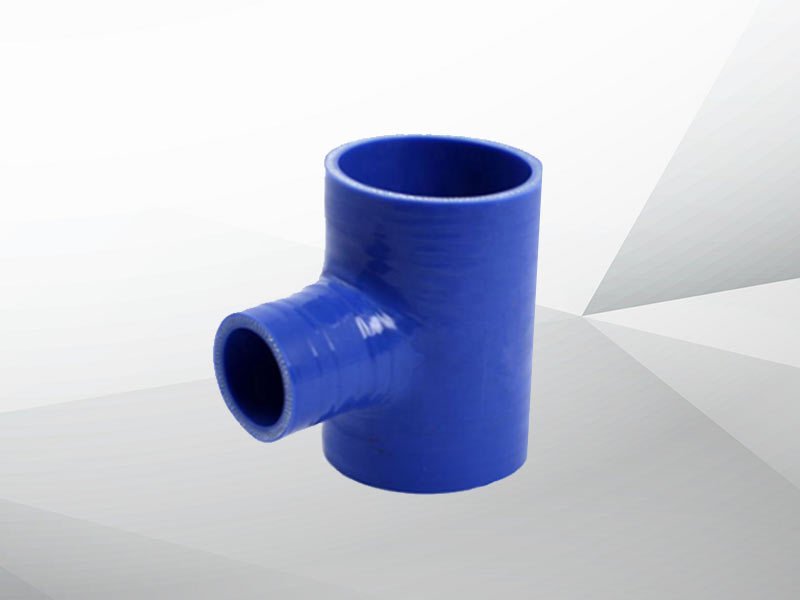

Silicone T Hose

Silicone T hose is a three-way connector to join two or three hoses. Great temperature resistance makes it ideal for all vehicle systems. Besides standard silicone hose T pieces, ZJhose offers reducer T hose. Contact us now and get the best quotation.

Silicone T Hose

Tube: 100% High quality silicone

Reinforcement: Four ply of polyester/aramid fabric

Cover: Silicone

Color: Black, red, blue, green, yellow

Temperature: -40℃ to +220℃ (-40℉ to +428℉)

Silicone T Piece is built for coolant plumbing applications with endurance and high performance. Silicone material with 4ply or 5ply reinforcement makes the hose tough and reliable. T piece silicone hose is three-way silicone coupler and flexible in the temperature from -55℃ to +250℃. Technology and quality conform to the high standards. Bright colour with a smooth and shiny “wipe-down” finish. Used with hose clamps to construct the exact bends and lengths.

Silicone T Hose Features

High temperature and aging resistant: -40℃ ~ +220℃
Physical laziness, good air permeability
Good electrical insulating performance
Odourless, nontoxic and eco-friendly
We offer OEM/ODM, 3D design and we can produce according to your drawings

Silicone T Hose Application

Heating and cooling systems, car charge-air-cooler (hot & cold side), turbo charger systems & custom compressor, inter cooler or intake & inlet piping for turbo, superchargers, etc.

Product Parameters

Silicone T Hose Specification

ID		Layer	Thickness	Length	ID		Layer	Thickness	Length
inch	mm	ply	mm	mm	inch	mm	ply	mm	mm
1 1/2″x5/8″	38×16	4	4-5	102×50	2 3/8″x1 1/3″	60×34	4	4-5	102×50
1 1/2″x1″	38×25	4	4-5	102×50	2 1/2″x1″	63X25	4	4-5	102×50
1 3/4″x1″	45×25	4	4-5	102×50	2 1/2″x1 1/3″	63X34	4	4-5	102×50
2″x1″	51×25	4	4-5	102×50	2 3/4″x1″	70×25	4	4-5	102×50
2″x1 1/3″	51×34	4	4-5	102×50	2 3/4″x1 1/3″	70×34	4	4-5	102×50
2 1/4″x1 1/3″	57×34	4	4-5	102×50	3″x1″	76×25	4	4-5	102×50
2 3/8″x1″	60x 25	4	4-5	102×50	3″x1 1/3″	76×34	4	4-5	102×50
2 3/8″x1 1/3″	60×34	4	4-5	102×50	1 1/2″x5/8″	38×16	4	4-5	102×50
2 1/2″x1″	63X25	4	4-5	102×50	1 1/2″x1″	38×25	4	4-5	102×50
2 1/2″x1 1/3″	63X34	4	4-5	102×50	1 3/4″x1″	45×25	4	4-5	102×50
2 3/4″x1″	70×25	4	4-5	102×50	2″x1″	51×25	4	4-5	102×50
2 3/4″x1 1/3″	70×34	4	4-5	102×50	2″x1 1/3″	51×34	4	4-5	102×50
3″x1″	76×25	4	4-5	102×50	2 1/4″x1 1/3″	57×34	4	4-5	102×50
3″x1 1/3″	76×34	4	4-5	102×50	2 3/8″x1″	60x 25	4	4-5	102×50
1 1/2″x5/8″	38×16	4	4-5	102×50	2 3/8″x1 1/3″	60×34	4	4-5	102×50
1 1/2″x1″	38×25	4	4-5	102×50	2 1/2″x1″	63X25	4	4-5	102×50
1 3/4″x1″	45×25	4	4-5	102×50	2 1/2″x1 1/3″	63X34	4	4-5	102×50
2″x1″	51×25	4	4-5	102×50	2 3/4″x1″	70×25	4	4-5	102×50
2″x1 1/3″	51×34	4	4-5	102×50	2 3/4″x1 1/3″	70×34	4	4-5	102×50
2 1/4″x1 1/3″	57×34	4	4-5	102×50	3″x1″	76×25	4	4-5	102×50
2 3/8″x1″	60x 25	4	4-5	102×50	3″x1 1/3″	76×34	4	4-5	102×50

Production Details

Our silicone Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive silicone hose solutions.
