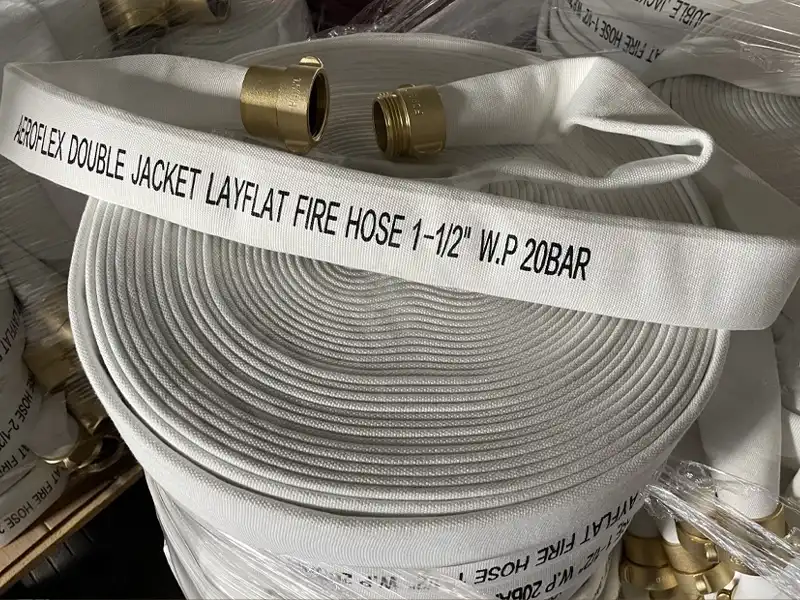

Double jacket Fire Hose

Double Fire Hose

Home > Double jacket Fire Hose

Double Jacket Layflat Fire Hose is tough and ready for action. But it is very light in weight. The layflat hose has a smooth inner lining. Thus it provides the user with max flow with min friction loss.

Product Categories
PVC Hose
- PVC Layflat Hose
- PVC Steel Wire Hose
- PVC Suction Hose
- PVC Braided Hose
- PVC Garden Hose
- PVC Clear Hose
- PVC Air Hose
- PVC Gas Hose
- PVC Spray Hose
- PVC Washer Hose
Industrial Hose
- Industrial Water Hose
- Industrial Air Hose
- Industrial Oil Hose
- Food Grade Hose
- Chemical Hose
- Composite Hose
- Material Handling Hose
- Paint Spray Hose
- Welding Hose
- Steam Hose
Hydraulic Hose
Auto Rubber Hose
- Silicone Heater Hose
- Silicone Straight Hose
- Corrugated Silicone Hose
- Silicone Hump Hose
- Silicone Elbow Hose
- Silicone T Hose
- OEM Silicone Hose
- Silicone Braided Hose
- Silicone Vacuum Hose
Auto Silicone Hose
Pneumatic Hose
Fire Hose
Duct Hose
- Tunnel Ventilation Duct
- Silicone Duct
- PU Duct Hose
- PU Helix Duct Hose
- PVC Duct Hose
- PVC Helix Duct Hose
- Nylon Duct
- High Tem Duct Hose
Industrial Hose Fittings
Hose Sleeve

Double Fire Hose Structure

Lining: PVC/Rubber/PU

Cover: Double polyester jacket

Double Jacket Fire Hose Applications

Double jacket fire hoses structural firefighting, wildfire control, industrial safety, emergency response, & irrigation. Learn how to choose the right hose.

Double Jacket Fire Hose Features

Premium Material Construction: Features a tightly woven virgin spun polyester outer jacket for maximum wear resistance and a super-strong filament polyester inner jacket delivering superior pressure performance while minimizing moisture absorption.
Exceptional Durability & Resistance: Engineered to withstand harsh conditions including exposure to most chemicals, petroleum products, ozone, UV radiation, rot, and mildew.
Versatile Heavy-Duty Applications: The ideal fire fighting hose, also perfectly suited for demanding industrial use in marine (ship), petroleum, chemical processing, and mining sectors.

Double Jacket Fire Hose Specification

ID		WP		BP		L
inch	mm	bar	mpa	bar	mpa	m
1″	25	10-25	1.0-2.5	30-75	3.0-7.5	40
1-1/4″	32	10-25	1.0-2.5	30-75	3.0-7.5	40
1-1/2″	38	10-25	1.0-2.5	30-75	3.0-7.5	40
1-3/4″	45	10-25	1.0-2.5	30-75	3.0-7.5	40
2″	51	10-25	1.0-2.5	30-75	3.0-7.5	40
2-1/2″	64	10-25	1.0-2.5	30-75	3.0-7.5	40
2-3/4″	70	10-25	1.0-2.5	30-75	3.0-7.5	40
3″	76	10-25	1.0-2.5	30-75	3.0-7.5	40
4″	102	10-25	1.0-2.5	30-75	3.0-7.5	40
5″	127	10-25	1.0-2.5	30-75	3.0-7.5	40
6″	152	10-25	1.0-2.5	30-75	3.0-7.5	40
