Hydraulic Hose SAE 100 R7

Home > SAE 100 R7 Hose

Hydraulic Hose SAE 100 R7

SAE 100R7 thermoplastic hydraulic hose is suitable for hydraulic fluids. While it can work at -40 °C-100 °C. 100R7 hose is non-conductive due to its special material.

Product Categories
PVC Hose
- PVC Layflat Hose
- PVC Steel Wire Hose
- PVC Suction Hose
- PVC Braided Hose
- PVC Garden Hose
- PVC Clear Hose
- PVC Air Hose
- PVC Gas Hose
- PVC Spray Hose
- PVC Washer Hose
Industrial Hose
- Industrial Water Hose
- Industrial Air Hose
- Industrial Oil Hose
- Food Grade Hose
- Chemical Hose
- Composite Hose
- Material Handling Hose
- Paint Spray Hose
- Welding Hose
- Steam Hose
Hydraulic Hose
Auto Rubber Hose
- Silicone Heater Hose
- Silicone Straight Hose
- Corrugated Silicone Hose
- Silicone Hump Hose
- Silicone Elbow Hose
- Silicone T Hose
- OEM Silicone Hose
- Silicone Braided Hose
- Silicone Vacuum Hose
Auto Silicone Hose
Pneumatic Hose
Fire Hose
Duct Hose
- Tunnel Ventilation Duct
- Silicone Duct
- PU Duct Hose
- PU Helix Duct Hose
- PVC Duct Hose
- PVC Helix Duct Hose
- Nylon Duct
- High Tem Duct Hose
Industrial Hose Fittings
Hose Sleeve

Compliance & Standards

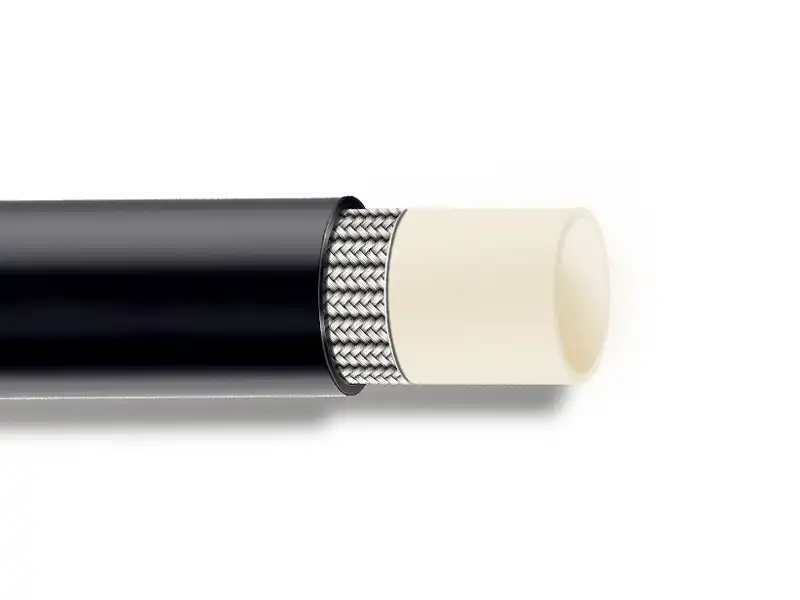

SAE 100R7 Hose consists of three parts: tube, reinforce and cover. The tube is made from high quality and oil proof PA. Thus the hose is ideal for petroleum and water based hydraulic fluids. While the reinforce is made from special fiber. Then the cover is made from high quality PU. Thus 100R7 hydrualic hose has good wear resistance. In general, SAE 100 R7 hose has 2 types as follow.

SAE 100 R7 Hose

Fiber Braid (Nonmetallic) Resin Hose SAE 100R7
Tube: Oil proof Polyamide (PA)
Reinforcement: one or two layers of high tensile synthetic fibre braid
Cover: Black and high wear resistant PU
Temperature: -40℃ to +100℃ (-104℉ to +212℉)

Steel Wire Braid Resin Hose

Tube: Oil proofPolyamide (PA)

Reinforcement: one or two layers of high tensile steel wire braid

Cover: Black and high abrasion resistant PU

Temperature: -40℃ to +100℃ (-104℉ to +212℉)

Hydraulic Hose SAE100 R7 Application

Medium pressure hydraulic and pneumatic systems. Exceeds SAE 100R7. It’s also ideal for pneumatic or gaseous systems, use perforated (pin-pricked) hose.

Product Parameters

SAE 100 R7 Hose Fibre Braid

Metric Size	Inch Size	SAE Dash Size	I.D	O.D		Allowed Tolerance	Max W.P		Min B.P		Max B.R		Max W.T
Metric Size	Inch Size	SAE Dash Size	Standard	Standard		Allowed Tolerance	one layer	two layers	Min B.P		Max B.R		Max W.T
mm	inche	dash	mm	one layer	two layers	mm	psi	psi	one layer	two layers	one layer	two layers	one layer	two layers
5	3/16	03	4.8	10.3	10.8	±0.10	3045	3620	84.0	100.0	35	55	65	70
6.3	1/4	04	6.3	12.7	13.3	±0.10	2900	3980	80.0	110.0	50	75	80	125
8	5/16	05	7.9	14.3	15.0	±0.10	2755	3770	76.0	105.0	50	85	125	150
10	3/8	06	9.5	15.9	18.0	±0.10	2540	3620	70.0	100.0	80	100	140	210
12.5	1/2	08	12.7	19.8	21.6	±0.15	2030	3040	56.0	84.0	100	140	200	260
16	5/8	10	15.9	23.3	23.6	±0.15	1885	2320	52.0	64.0	160	165	260	295
19	3/4	12	18.9	26.5	26.4	±0.15	1305	2030	36.0	56.0	180	195	320	315
25	1	16	25.4	34.0	34.0	±0.20	1015	1520	28.0	42.0	250	256	400	450

SAE 100 R7 Hose Steel Wire Braid

Metric Size	Inch Size	SAE Dash size	I.D	O.D		Allowed Tolerance	Max W.P		Min B.P		Max B.R		Max W.T
Metric Size	Inch Size	SAE Dash size	Standard	Standard		Allowed Tolerance	one layer	two layers	Min B.P		Max B.R		Max W.T
mm	inche	dash	mm	one layer	two layers	mm	psi	psi	one layer	two layers	one layer	two layers	one layer	two layers
6.3	1/4	04	6.3	12.7	13.3	±0.10	3990	5070	110.0	140.0	40	40	160	290
8	5/16	05	7.9	14.3	14.9	±0.10	3620	4710	100.0	130.0	55	50	215	340
10	3/8	06	9.5	15.9	16.7	±0.10	3260	4200	90.0	116.0	65	70	240	400
12.5	1/2	08	12.7	19.8	19.8	±0.15	2540	3770	70.0	105.0	85	80	310	560
16	5/8	10	15.9	23.3	23.3	±0.15	2030	2900	56.0	80.0	115	130	410	630
19	3/4	12	18.9	26.5	26.0	±0.15	1740	2540	48.0	70.0	140	160	500	750
25	1	16	25.4	34.0	33.0	±0.20	1450	1740	40.0	48.0	180	220	650	1000

SAE 100 R7 Hose Twin Hose

Metric Size	Inch Size	SAE Dash Size	I.D	O.D	Allowed Tolerance	Max W.P	Min B.P	Max B.R	Max W.T
Standard	Standard	fiber braid	wire braid
mm	inche	dash	mm	mm	mm	psi	psi	F.B	W.B	F.B	W.B	F.B	W.B
6.3	1/4	04	6.3	12.7	±0.10	3625	3990	100.0	110.0	50	40	220	360
8	5/16	05	7.9	14.3	±0.10	3045	3625	80.0	100.0	50	40	250	430
10	3/8	06	9.5	15.9	±0.15	2540	3260	70.0	90.0	80	50	280	480
12.5	1/2	08	12.7	19.8	±0.15	2320	2680	65.0	65.0	100	70	400	620

Production Details

Our Hydraulic Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive hydraulic hose solutions.
