SAE J20 R3 Rubber Heater Hose

Tube: Special rubber formula with perfect brake fluid compatibility

Reinforcement: High tensile synthetic yarn (Polyester)

Cover: Smooth, black EPDM with good heat, ozone and weather resistance

Temperature: -30℃ to +110℃ (-22℉ to +230℉)

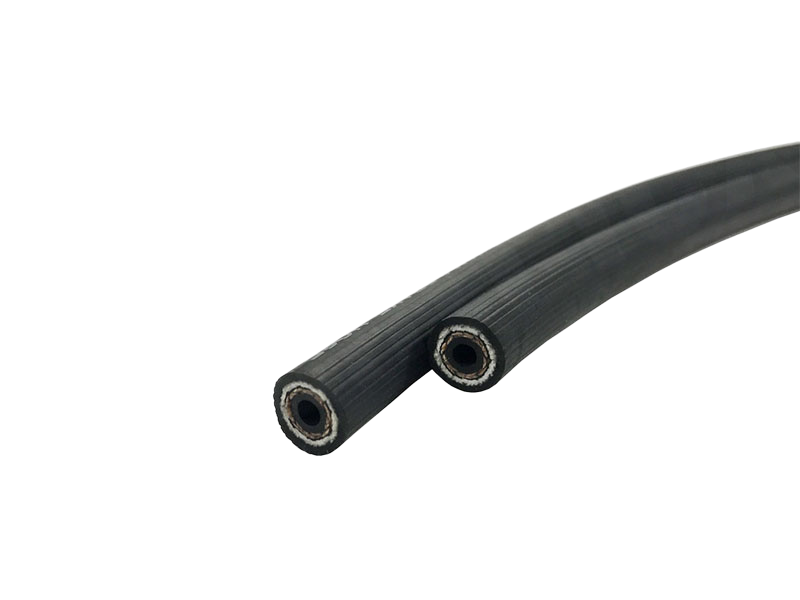

Rubber Brake Hose

ZJhose Rubber Brake Hose features a robust five-layer construction: EPDM inner tube, first PVA-reinforced textile braid, adhesive coating, second PVA-reinforced textile braid, and outer protective EPDM cover.

Each rubber air brake hose assembly undergoes pressure testing up to 1450 psi to guarantee maximum safety and reliability.

Our brake fluid rubber hoses are available in customizable lengths (50m, 100m, 200m, etc.), offering exceptional durability, resilience, and long-lasting performance.

SAE J1401 Hose Features

Multi-resistance performance: High pressure, aging, oil, and cold resistant

Stable dimensional properties: Durable, resilient, and low volumetric expansion

Flexible & long-lasting: Excellent flexibility with small bend radius, ensuring extended service life

J1401 Brake Hose Application

Widely used in hydraulic brake and clutch systems of vehicles, including drum brake and disc brake conversion applications.

Product Parameters

J1401 Brake Hose Specification

Item code	ID	OD	WP	BP
inch	mm	mm	bar	psi	bar	psi
SAE J1401-3	1/8”	3.2	10.5	100	1450	490	7100
SAE J1401-4	3/16”	4.8	12.5	100	1450	345	5000

Production Details

Our rubber Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive rubber hose solutions.
