Hydraulic Hose SAE 100 R14

PTFE Hose assemblies is light in weight. Besides, it resists aging, chemical corrosion, high and low temp. It can transfer both liquid and gas. It applys to aviation, aerospace aircraft , servo control, lubricant and fuel system.

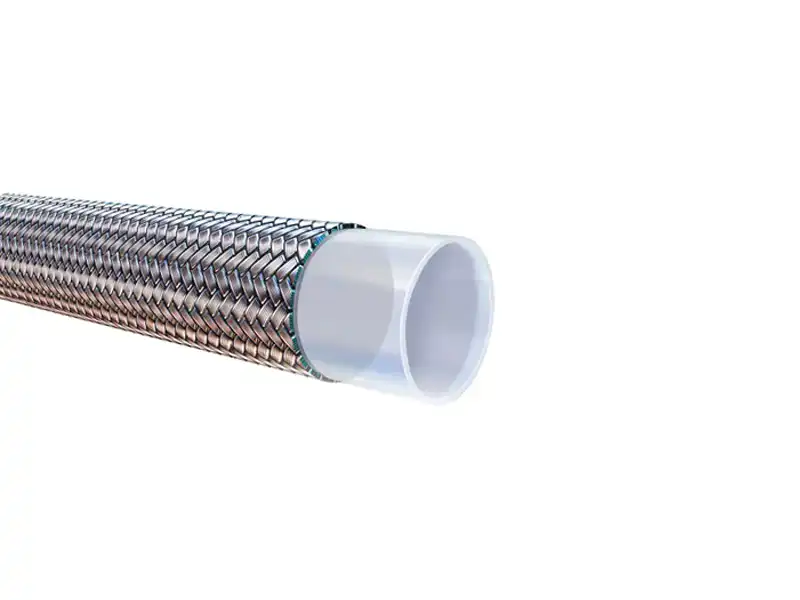

Inner Smooth Bore PTFE Hose

Tube: B100% PTFE resin

Cover: Single or double AISI 304 or 316 stainless steel wire outer braid

Inner Convoluted PTFE Hose

Tube: 100% PTFE resin

Cover: Single or double AISI 304 or 316 stainless steel wire outer braid

Temperature: -73℃ to +260℃（-164 ℉ to +500 ℉）

Hydraulic Hose SAE100 R14 Application

It is flexible and kink resistant to work with chemical, high temp hydraulics, tight routings and general usages. Besides, it also serves in electronic, airspace and so on.

Product Parameters

SAE 100 R14 Smooth Hose Specification

Size	I.D		O.D		Wall Thickness	W.P		B.P		Minimum Bending Radius
inch	mm	inch	mm	inch	mm	psi	bar	psi	bar	mm
1/8″	3.5	0.138	6.6	0.26	1	4727	326	14613	1007.76	51
3/16″	4.8	0.189	8	0.315	0.85	3582	247	10738	740.52	75
1/4″	6.4	0.252	9.2	0.362	0.85	3106	214.2	9658	666.06	81
5/16″	8	0.315	11	0.433	0.85	2781	191.76	8682	598.74	92
3/8″	9.7	0.382	12.8	0.504	0.85	2736	188.7	8223	567.12	131
1/2″	12.7	0.5	15.9	0.626	1	1568	108.12	6818	470.22	182
5/8″	16	0.63	19.2	0.756	1	1878	129.54	5650	389.64	211
3/4″	19	0.748	22.7	0.894	1.2	1154	79.56	3979	274.38	338
7/8″	22.2	0.874	26	1.024	1.2	887	61.2	2884	198.9	421
1″	25	0.984	29.3	0.154	1.5	592	40.8	2263	156.06	539
2″	50	1.969	55.6	2.189	2	444	30.6	1775	122.4	1015

SAE 100 R14 Corrugated Hose Specification

Size	I.D		O.D		Wall Thickness	W.P		B.P		Minimum Bending Radius
inch	mm	inch	mm	inch	mm	psi	bar	psi	bar	mm
1/4″	6.5	0.256	11.5	0.453	0.8	1929	133	5546	382.5	20
5/16″	8	0.315	12.3	0.484	0.65	1923	132.6	5324	367.2	25
3/8″	10	0.394	14.2	0.559	0.65	1849	127.5	5177	357	33
1/2″	13	0.512	17.2	0.677	0.85	1627	112.2	4881	336.6	42
5/8″	16	0.63	21.6	0.85	0.9	1183	81.6	3560	244.8	60
3/4″	19	0.748	25.3	0.996	1	1036	71.4	3108	214.2	63
1″	25	0.984	31	1.22	1	740	51	2219	153	79
1-1/4″	32	1.26	39	1.535	1.1	710	48.96	2071	142.8	125
1-1/2″	38	1.496	45	1.772	1.45	636	43.86	1775	122.4	145
2″	50	1.969	60	2.362	1.5	503	34.68	1479	102	180

Production Details

Our Hydraulic Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive hydraulic hose solutions.
