Hydraulic Hose SAE 100 R16

SAE 100 R16 steel wire reinforced hydraulic hose is specially designed for applications in narrow spaces, thanks to its small bend radius and compact outer diameter.

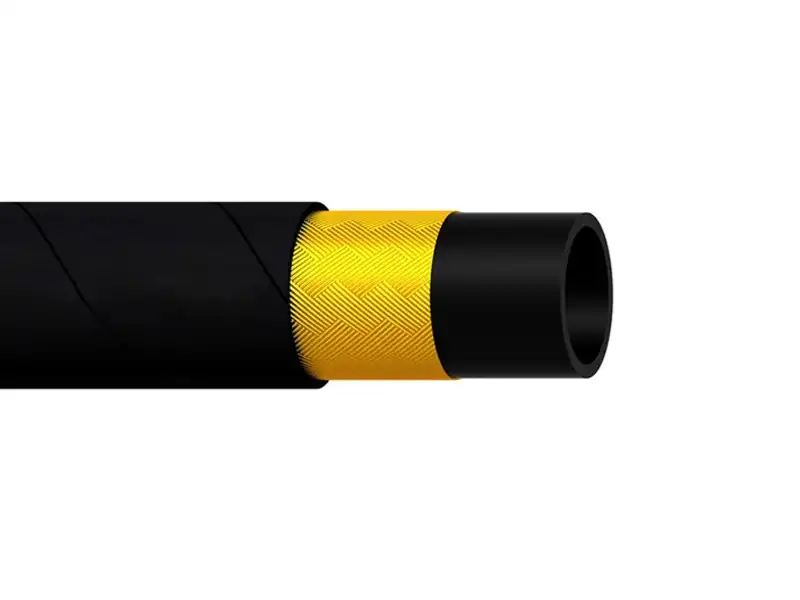

SAE 100 R16 Hose

Tube: Black and oil resistant nitrile rubber

Reinforcement: two layers of steel wire braided

Cover: Black and oil and weather resistant synthetic rubber

Surface: wrapped surface and smooth surface are available

Temperature: -40℃ to +100℃ (-40℉ to +212℉)

Key Specification

Surface options: Wrapped surface or smooth surface

Temperature range: -40°C to +100°C (-40°F to +212°F)

Compatible fluids: Petroleum-based and water-based hydraulic fluids

Hydraulic Hose SAE100 R8 Application

Hydraulic hose SAE 100 R16 can be used for both petroleum-based and water-based hydraulic fluids.

Product Parameters

SAE 100 R16 Hose Specification

Metric Size	Inch Size	SAE Dash Size	I.D	W.D	O.D	Max W.P	Min B.P	Min B.R	W.T
mm	mm	mm
mm	inche	dash	min	max	max	max	mpa	psi	mpa	mm	Kg/m
6.3	1/4	04	6.2	7.0	12.3	14.5	35.0	5075	140.0	50.0	0.31
8	5/16	05	7.7	8.5	13.3	15.7	29.7	4307	119.0	55.0	0.35
10	3/8	06	9.3	10.1	15.9	18.8	28.0	4060	112.0	65.0	0.47
12.5	1/2	08	12.3	13.5	19.0	22.0	24.5	3553	98.0	90.0	0.54
16	5/8	10	15.5	16.7	22.6	25.4	19.2	2784	77.0	100.0	0.7
19	3/4	12	18.6	19.8	26.3	29.0	15.7	2277	63.0	120.0	0.86
25	1	16	25.0	26.4	34.0	36.6	14.0	2030	56.0	150.0	1.2
31.5	1-1/4	20	31.4	33.0	41.9	44.3	11.3	1639	45.0	210.0	1.6
