Hydraulic Hose SAE 100 R13

SAE 100 R13 steel wire spiraled hydraulic hose is suitable for petroleum based hydraulic oils. While it mainly works at high pressure conditions. It is composed of three parts: tube, reinforce and cover. The tube absorbs black and oil resistant synthetic rubber.

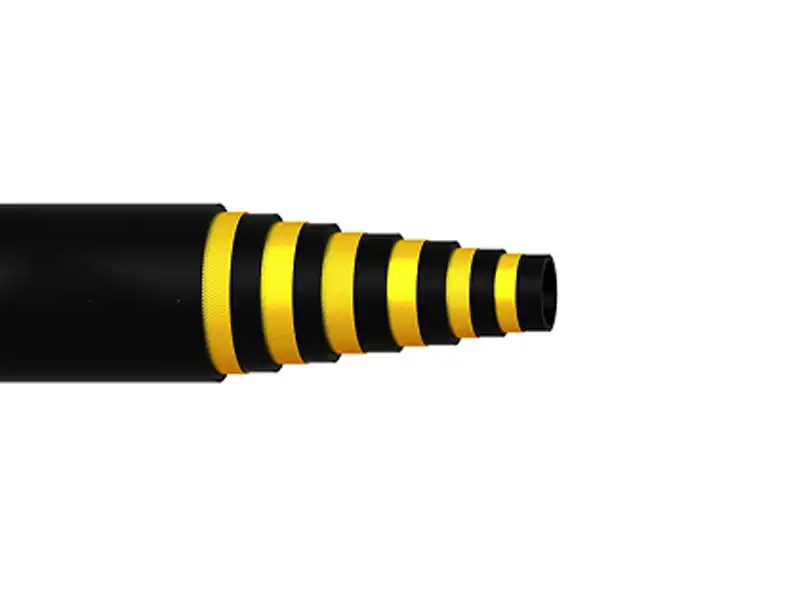

SAE 100 R13 Hose

Tube: Black and oil resistant synthetic nitrile rubber

Reinforcement: 4 layers (3/4,1″); 6 layers (1-1/4,1-1/2, 2″) steel wire spiral

Cover: Black and oil and weather resistant synthetic rubber

Surface: wrapped surface

Temperature: -40℃ to +121℃ (-40℉ to +250℉)

Thus it can convey petroleum based hydraulic oils. The reinforce is multiple layers of high tensile and high strength thick spiraled steel wire. Thus the hose can bear extremely high pressure. Besides, the steel wire spiraled hose can bear higher working pressure than steel wire reinforced hose. Therefore, the hose works well in very high pressure environment. While the cover is high quality black synthetic rubber. Thus it is resistant to abrasion, corrosion, cut, weather, ozone, aging and sunlight.

Hydraulic Hose SAE100 R13 Application

Such hose is suitable for extremely high pressure and high impulse hydraulic applications. This hose meet SAE100 R13. Compatible with synthetic esters, polyglycols and vegetable oils as well as petroleum based fluids.

Product Parameters

SAE 100 R13 Hose Specification

Metric Size	Inch Size	SAE Dash Size	I.D	W.D	O.D	Max W.P	Min B.P	Min B.R	W.T
mm	mm	mm
mm	inch	dash	min	max	min	max	min	max	mpa	psi	mpa	mm	kg/m
19	3/4	12	18.6	19.8	28.2	29.8	31.0	33.2	35.0	5080	140.0	240	1.53
25	1	16	25.0	26.4	34.1	36.0	37.6	39.8	35.0	5080	140.0	300	2.09
32	1-1/4	20	31.4	33.0	45.6	48.0	48.3	51.3	35.0	5080	140.0	420	3.76
38	1-1/2	24	37.7	39.3	53.1	55.5	55.8	58.8	35.0	5080	140.0	500	4.58
51	2	32	50.4	52.0	66.9	69.3	69.5	72.7	35.0	5080	140.0	640	6.69
