Hydraulic Hose SAE 100 R12

SAE 100 R9/R10/R12 steel wire spiraled hydraulic hose is specially engineered for extreme high-pressure hydraulic systems, primarily compatible with petroleum-based hydraulic oils. It delivers exceptional pressure resistance and durability, making it the ideal choice for heavy-duty industrial, mining, and construction machinery.

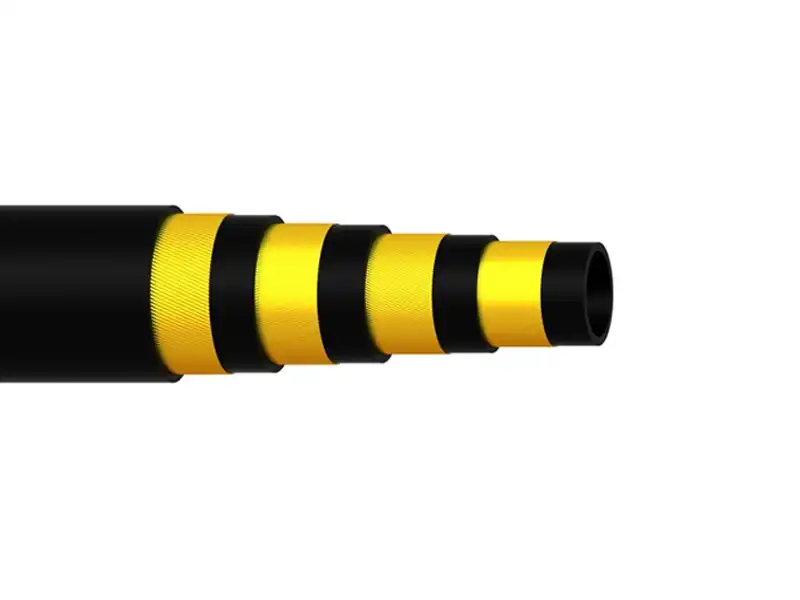

SAE 100 R12 Hose

Tube: Black and oil resident synthetic rubber (Nitrile)

Reinforcement: Four alternating layers of spiraled and high-tensile steel wire.

Cover: Black and oil resistant synthetic (Nitrile).

Temperature: -40℃ to +121℃ (-40℉ to +250℉)

Hydraulic Hose SAE100 R12 Application

SAE 100 R12 hose suitable for extremely high pressure and high impulse apps. Exceeds all the performance requirements for SAE 100 R9 / R10 / R12, EN856 R9 / R10 / R12, SAE 100 R12 and EN856 4SP. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum based fluids.

Product Parameters

SAE 100 R12 Hose Specification

Metric Size	Inch Size	SAE Dash Size	I.D		W.D		O.D		Max W.P		Min B.P	Min B.R	W.T
Metric Size	Inch Size	SAE Dash Size	mm		mm		mm		Max W.P		Min B.P	Min B.R	W.T
mm	inch	dash	min	max	min	max	min	max	mpa	psi	mpa	mm	kg/m
10	3/8	06	9.3	10.1	16.6	17.8	19.5	21.0	28.0	4060	112.0	125	0.70
12.5	1/2	08	12.3	13.5	19.9	21.5	23.0	24.6	28.0	4060	112.0	180	0.88
16	5/8	10	15.5	16.7	23.8	25.4	26.5	28.2	28.0	4060	112.0	200	1.06
19	3/4	12	18.6	19.8	26.9	28.4	29.9	31.5	28.0	4060	112.0	240	1.38
25	1	16	25.0	26.4	34.1	35.7	36.8	39.2	28.0	4060	112.0	300	1.96
31.8	1-1/4	20	31.4	33.0	42.7	45.1	45.4	48.6	21.0	3050	84.0	420	2.61
38	1-1/2	24	37.7	39.3	49.2	51.6	51.9	55.0	17.5	2540	70.0	500	3.05
51	2	32	50.8	52.0	62.5	64.8	65.1	68.3	17.5	2540	70.0	640	4.50
