Hydraulic Hose SAE 100 R15

Home > SAE 100 R15 Hose

Hydraulic Hose SAE 100 R15

SAE 100 R15 steel wire spiraled hydraulic hose is very popular in high pressure conditions. And it’s suitable for petroleum based hydraulic oils.

SAE 100 R15 Hose

Tube: Black and oil resistant synthetic nitrile rubber

Reinforcement: 4 layers (3/8-1″), 6 layers (1-1/4,1-1/2) steel wire spiral

Cover: Black and oil and weather resistant synthetic rubber

Surface: wrapped surface

Temperature: -40℃ to +100℃ (-40℉ to +212℉)

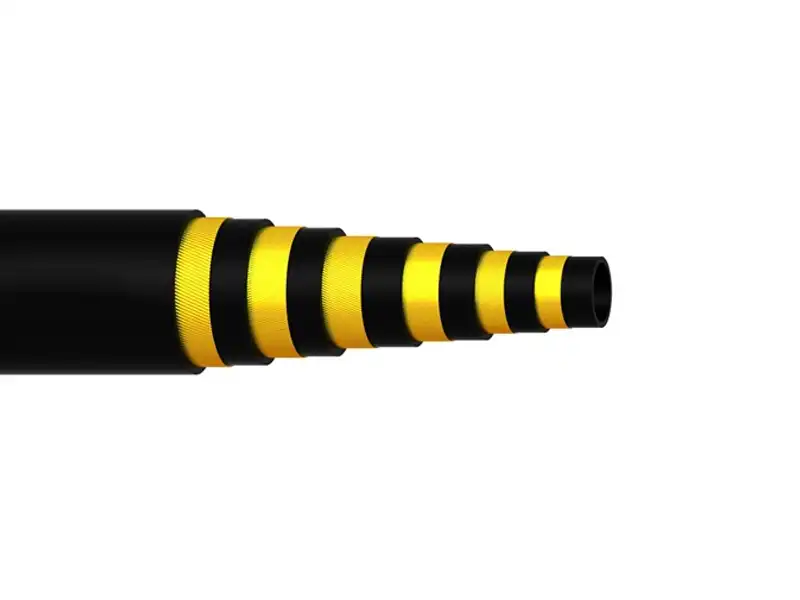

SAE 100 R15 hydraulic hose is composed of three components: inner tube, reinforcement layer and outer cover.

The inner tube is made of black, oil-resistant synthetic rubber, making it highly suitable for conveying petroleum-based hydraulic fluids.

The reinforcement layer adopts multi-layers of high-tensile, high-strength spiraled steel wires, enabling the hose to withstand extremely high working pressure.

The outer cover is constructed from premium synthetic rubber, providing excellent resistance to abrasion, corrosion, weathering, ozone, aging and cutting damage.

Hydraulic Hose SAE100 R15 Application

Hydraulic hose SAE 100 R15 can be used for hydraulic system service with petroleum and water based fluids.

Product Parameters

SAE 100 R15 Hose Specification

Metric Size	Inch Size	SAE Dash Size	I.D	W.D	O.D	Max W.P	Min B.P	Min B.R	W.T
mm	mm	mm
mm	inche	dash	min	max	max	max	mpa	psi	mpa	mm	kg/m
10	3/8	06	9.3	10.1	20.3	23.3	42.0	6090	168.0	150.0	0.91
12.5	1/2	08	12.3	13.5	24.0	26.8	42.0	6090	168.0	200.0	1.21
19	3/4	12	18.6	19.8	32.9	36.1	42.0	6090	168.0	265.0	2.25
25	1	16	25.0	26.4	38.9	42.9	42.0	6090	168.0	330.0	3.12
31.5	1-1/4	20	31.4	33.0	48.4	51.5	42.0	6090	168.0	445.0	3.87
38	1-1/2	24	37.7	39.3	56.3	59.6	42.0	6090	168.0	530.0	5.29

Production Details

Our Hydraulic Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive hydraulic hose solutions.
