Nylon Air Hose

Home > Nylon Air Hose

Nylon air hose is akso know as polyamide hose and PA hose. As for the material, it cna be PA 6 and PA 12. PA hose widely serves in all kinds of pneumatic tools and machines. Besides, it acts as the air brake hose and power steering hose in the vehicles.

Product Categories
PVC Hose
- PVC Layflat Hose
- PVC Steel Wire Hose
- PVC Suction Hose
- PVC Braided Hose
- PVC Garden Hose
- PVC Clear Hose
- PVC Air Hose
- PVC Gas Hose
- PVC Spray Hose
- PVC Washer Hose
Industrial Hose
- Industrial Water Hose
- Industrial Air Hose
- Industrial Oil Hose
- Food Grade Hose
- Chemical Hose
- Composite Hose
- Material Handling Hose
- Paint Spray Hose
- Welding Hose
- Steam Hose
Hydraulic Hose
Auto Rubber Hose
- Silicone Heater Hose
- Silicone Straight Hose
- Corrugated Silicone Hose
- Silicone Hump Hose
- Silicone Elbow Hose
- Silicone T Hose
- OEM Silicone Hose
- Silicone Braided Hose
- Silicone Vacuum Hose
Auto Silicone Hose
Pneumatic Hose
Fire Hose
Duct Hose
- Tunnel Ventilation Duct
- Silicone Duct
- PU Duct Hose
- PU Helix Duct Hose
- PVC Duct Hose
- PVC Helix Duct Hose
- Nylon Duct
- High Tem Duct Hose
Industrial Hose Fittings
Hose Sleeve

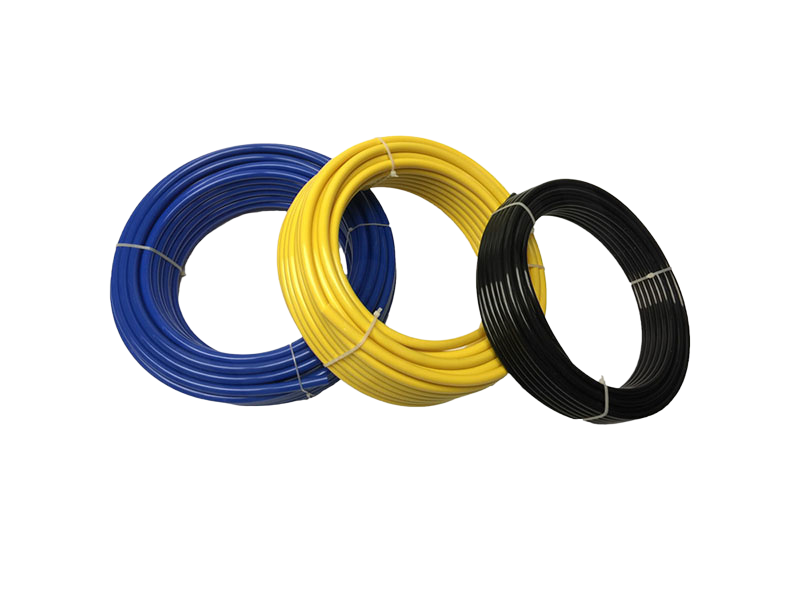

Nylon Air Hose

Material: Nylon

Temperature: -40℃ to +121℃ (-40℉ to +250℉)

Nylon Tubing is resistant to solvents, alkalis, oils, greases, petroleum products, fungus and molds.

ZJhose Nylon Air Hose is made from PA12 nylon, offering high durability.

Features:

Resists acids, moisture, saltwater, aging, UV
Excellent flexural fatigue resistance
Lightweight, small bending radius, for pressure pneumatic/hydraulic systems
Compatible with hydrocarbons, oils, fuels, refrigerants, and food-grade fluids

Application: Used for compressed air, hydraulic lines, fluid transfer, automotive fuel lines, and food-grade transport.

Product Parameters

Nylon Air Hose Specification

Size	ID	OD		BP		Size	ID	OD	WP	BP	BR
mm	mm	mm	mpa	mpa	mm	mm	mm	mm	mpa	mpa	mm
4.0*0.75	2.5	4	3.10	7.54	20	10.0*2.0	6	10	3.40	9.62	60
4.0*1.0	2	4	4.50	11.25	20	11.0*1.5	8	11	2.10	5.51	60
5.0*1.0	3	5	3.40	8.57	25	12.0*1.25	9.5	12	1.60	4.06	60
6.0*0.5	5	6	1.20	2.8	30	12.0*1.5	9	12	1.90	5	60
6.0*0.75	4.5	6	1.90	4.77	30	12.0*2.0	8	12	2.70	6.96	60
6.0*1.0	4	6	2.70	6.92	30	12.5*1.25	10	12.5	1.50	3.89	60
6.0*1.5	3	6	4.40	11.36	30	12.5*1.5	9.5	12.5	1.80	4.84	60
6.5*1.25	4	6.5	3.10	8.3	30	12.5*1.7	9.1	12.5	2.00	5.59	60
6.2*2.0	2	6	6.70	16.74	30	14.0*1.5	11	14	1.60	4.22	75
6.5*1.0	4.5	6.5	2.40	6.4	30	14.0*2.0	10	14	2.20	5.83	75
8.0*1.0	6	8	1.90	5	40	15.0*1.0	13	15	1.00	2.53	90
7.0*1.0	5	7	2.20	5.9	40	15.0*1.5	12	15	1.50	3.92	90
8.0*1.25	5.5	8	2.50	6.42	40	16.0*1.5	13	16	1.20	3.65	100
8.0*1.5	5	8	3.10	8	40	16.0*2.0	12	16	1.90	5	100
8.7*1.0	6.7	8.7	1.52	4.6	40	18.0*1.5	15	18	1.20	3.21	100
8.0*2.0	4	8	4.50	11.43	40	18.0*2.0	14	18	1.70	4.4	100
9.0*1.5	6	9	2.70	6.92	40	20.0*2.0	16	20	1.50	3.92
10.0*1.0	8	10	1.50	3.91	60	22.0*2.0	18	22	1.30	3.54
10.0*1.25	7.5	10	1.90	4.98	60
