EN 856 4SH Hose

EN856 4SH steel wire spiraled hydraulic hose is engineered to withstand extremely high pressure, making it perfectly suited for the most demanding operating conditions.

EN 856 4SH Hose

Tube: Black and oil resistant nitrile rubber

Reinforcement: four layers of spiral steel wire

Cover: Black oil and weather resistant rubber

Surface: wrapped surface

Temperature: -40℃ to +100℃ (-40℉ to +212℉)

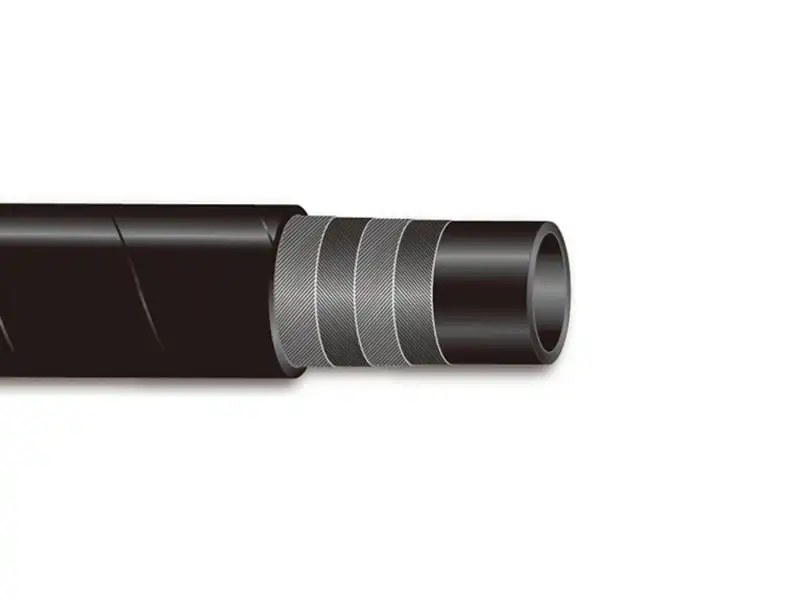

EN 856 4SH Hose consists of three parts: tube, reinforcement, and cover. The tube is made from black, oil-resistant nitrile rubber, making it ideal for oil transfer. The reinforcement is four layers of high-tensile, high-strength spiraled steel wires, specially designed for rubber hoses, thus enabling the hose to withstand high pressure. The cover is made of black synthetic rubber, which is resistant to oil, corrosion, abrasion, weather, and ozone, with a cloth-impression surface.

Hydraulic Hose EN 856 4SH Application

Hydraulic hose EN 856 4SH is suitable for use with petroleum and water-based hydraulic fluids.

Product Parameters

EN 856 4SH Hose Specification

Metric Size	Inch Size	SAE Dash Size	I.D	W.D	O.D	Max W.P	Min B.P	Min B.R	W.T
mm	mm	mm
mm	inche	dash	min	max	min	max	min	max	mpa	psi	mpa	mm	kg/m
19	3/4	12	18.6	19.8	27.6	29.2	31.4	33.0	42.0	6090	168.0	280.0	1.64
25	1	16	25.0	26.4	34.4	36.0	37.5	39.9	38.0	5510	152.0	340.0	2.03
31.5	1-1/4	20	31.4	33.0	40.9	42.9	43.9	47.1	32.5	4710	130.0	460.0	2.45
38	1-1/2	24	37.7	39.3	47.8	49.8	51.9	55.1	29.0	4210	116.0	560.0	3.35
51	2	32	50.4	52.0	62.2	64.2	66.5	69.7	25.0	3630	100.0	700.0	4.5
