Hydraulic Hose SAE 100 R17

SAE 100 R17 steel wire reinforced hydraulic hose is suitable for use in a compact and narrow space. Because it has small bend radius and outside diameter.

SAE 100 R17 Hose

Tube: Black and oil resistant nitrile rubber

Reinforcement: one layer (1/4-1/2″) or two layers (5/8-1″) of high tensile steel wire braided

Cover: Black and oil and weather resistant synthetic rubber

Surface: wrapped surface and smooth surface are available

Temperature: -40℃ to +100℃ (-40℉ to +212℉)

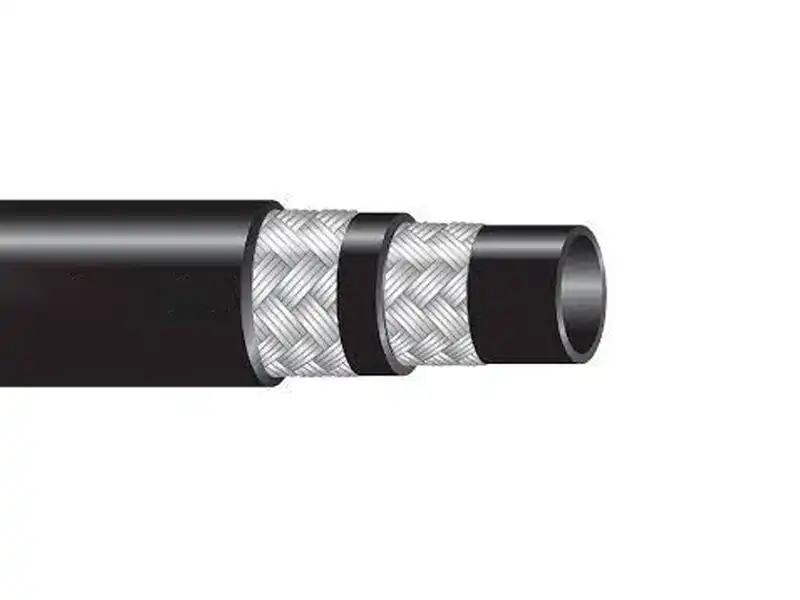

SAE 100 R17 Hose consists of three parts: tube, reinforcement, and cover. The tube is made of black nitrile rubber, which offers the best oil resistance among rubbers, making it ideal for oil delivery. The reinforcement is one or two layers of high-tensile braided steel wire, allowing the hose to bear high pressure. The cover is made of high-quality synthetic rubber, making the hose resistant to abrasion, weather, ozone, aging, and cuts, thus extending its service life.

Hydraulic Hose SAE100 R17 Application

Hydraulic hose SAE 100 R17 is suitable for hydraulic systems with petroleum and water-based fluids, and is also ideal for general industrial use.

Product Parameters

SAE 100 R17 Hose Specification

Metric Size	Inch Size	SAE Dash Size	I.D	W.D	O.D	Max W.P	Min B.P	Min B.R	W.T
mm	mm	mm
mm	inche	dash	min	max	max	max	mpa	psi	mpa	mm	kg/m
5	3/16	03	4.6	5.4	10.1	11.6	21.0	3045	84.0	45	0.18
6.3	1/4	04	6.2	7.0	11.0	13.2	21.0	3045	84.0	50	0.21
8	5/16	05	7.7	8.5	13.0	15.0	21.0	3045	84.0	55	0.26
10	3/8	06	9.3	10.1	15.0	17.0	21.0	3045	84.0	65	0.32
12.5	1/2	08	12.3	13.5	18.8	21.1	21.0	3045	84.0	90	0.42
16	5/8	10	15.5	16.7	23.6	25.9	21.0	3045	84.0	100	0.73
19	3/4	12	18.6	19.8	27.7	30.3	21.0	3045	84.0	120	0.93
25	1	16	25.0	26.4	35.6	38.6	21.0	3045	84.0	150	1.32

Production Details

Our Hydraulic Hose Workshop, outfitted with advanced facilities, integrates superior engineering expertise and painstaking craftsmanship. We offer comprehensive hydraulic hose solutions.
