TPU Layflat Hose

Home > TPU Layflat Hose

TPU Layflat Hose is made from extruded thermoplastic polyester based polyurethane (TPU) with excellent wear & tear properties. It’s reinforced with circular woven filament polyester yarns.

Product Categories
PVC Hose
- PVC Layflat Hose
- PVC Steel Wire Hose
- PVC Suction Hose
- PVC Braided Hose
- PVC Garden Hose
- PVC Clear Hose
- PVC Air Hose
- PVC Gas Hose
- PVC Spray Hose
- PVC Washer Hose
Industrial Hose
- Industrial Water Hose
- Industrial Air Hose
- Industrial Oil Hose
- Food Grade Hose
- Chemical Hose
- Composite Hose
- Material Handling Hose
- Paint Spray Hose
- Welding Hose
- Steam Hose
Hydraulic Hose
Auto Rubber Hose
- Silicone Heater Hose
- Silicone Straight Hose
- Corrugated Silicone Hose
- Silicone Hump Hose
- Silicone Elbow Hose
- Silicone T Hose
- OEM Silicone Hose
- Silicone Braided Hose
- Silicone Vacuum Hose
Auto Silicone Hose
Pneumatic Hose
Fire Hose
Duct Hose
- Tunnel Ventilation Duct
- Silicone Duct
- PU Duct Hose
- PU Helix Duct Hose
- PVC Duct Hose
- PVC Helix Duct Hose
- Nylon Duct
- High Tem Duct Hose
Industrial Hose Fittings
Hose Sleeve

TPU Layflat Hose

Tube & Cover: TPU

Reinforcement: Woven polyester jacket

Temperature: -55℃ to +80℃ (-67℉ to +176℉)

Application: Fire fighting, shipping, petroleum, chemical industry, agriculture and mining.

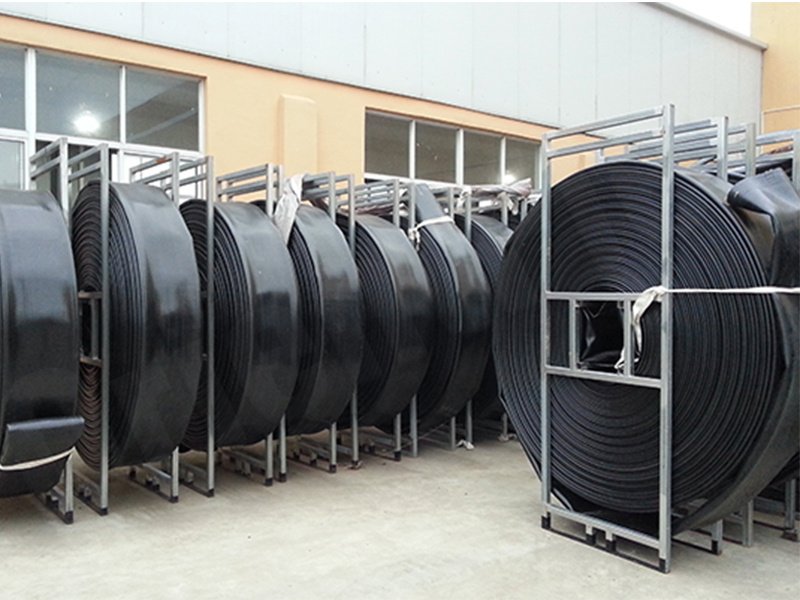

ZJ Hose TPU Layflat Hose

Our TPU Layflat Hose is manufactured using the “extrusion through-the-weave” production method, which creates an extremely strong bond between the cover and lining while firmly encapsulating the woven polyester reinforcement. This construction delivers exceptional wear, gouging, and tear resistance.

It also offers broad chemical resistance, and its lightweight design allows for production in very long lengths—even in larger diameters. The interlocked reinforcement weaves minimize hose length extension under tension or pressure, effectively reducing “snaking” during operation.

🔧 TPU Hose Features (ZJ Hose Standard)

Acid, alkali and corrosion resistant
Abrasion and oil resistant
Cold resistant and low flow resistance

🎯 TPU Layflat Hose Advantages (Customizable for ZJ Hose Clients)

Standard color: black; custom colors available on request
Individual product marking service
Compatibility with international couplings (custom binding available)
Custom diameter options
Standard lengths: 100m & 200m; other lengths negotiable

Product Parameters

TPU Layflat Hose Specification

ID		WP		BP		Measurement	L
inch	mm	mpa	psi	mpa	psi	m³	m
2	51	1	145	3	435	0.282	200
2	51	1.6	232	4.8	696	0.287	200
2.1/2	65	1	145	3	435	0.399	200
2.1/2	65	1.6	232	4.8	696	0.402	200
3	76	1	145	3	435	0.462	200
3	76	1.6	232	4.8	696	0.471	200
3.1/6	80	1.6	232	4.8	696	0.486	200
3.1/6	80	2.8	406	8.4	1218	0.486	200
4	102	1	145	3	435	0.69	200
4	102	1.2	145	3.6	435	0.693	200
4	102	1.6	232	4.8	696	0.713	200
4	102	2	290	6	870	0.794	200
4	102	2.8	406	8.4	1218	0.88	200
5	125	1	145	3	435	0.842	200
5	125	1.6	232	4.8	696	0.939	200
6	152	1	145	3	435	1.137	200
6	152	1.4	203	4.2	609	1.137	200
6	152	1.6	232	4.8	696	1.141	200
6	152	2	290	6	870	1.144	200
6	152	2.5	362	7.5	1086	1.411	200
6	152	2.8	406	8.4	1218	1.42	200
8	200	0.8	116	2.4	348	1.444	200
8	200	1	145	3	435	1.444	200
8	200	1.2	174	3.6	522	1.48	200
8	200	1.4	203	4.2	609	1.469	200
8	200	1.6	232	4.8	696	1.48	200
8	200	2	290	6	870	1.48	200
10	250	1	145	3	435	2.032	200
10	250	1.2	174	3.6	522	2032	200
10	250	1.4	203	4.2	609	2.036	200
10	250	1.6	232	4.8	696	2.478	200
12	300	0.8	116	2.4	348	2.424	200
12	300	1	145	3	435	2.424	200
12	300	1.2	174	3.6	522	2.952	200
12	300	1.4	203	4.2	609	2.957	200
14	350	0.8	116	2.4	348	3.422	200
14	350	1	145	3	435	3.436	200
16	400	0.8	116	2.4	348	3.906	200
16	400	1	145	2.4	348	3.920	200

Production Details

ZJhose takes pride in delivering PVC Layflat Hoses that redefine reliability and efficiency. Each hose is precision-crafted with advanced manufacturing and premium raw materials, built to meet the tough demands of industrial and agricultural use.
