Hydraulic Hose SAE 100 R8

SAE 100 R8 thermoplastic hydraulic hose is engineered for high-pressure hydraulic systems, compatible with both petroleum-based and water-based hydraulic fluids. It features a robust 3-layer construction that delivers exceptional pressure resistance, durability, and long service life, making it ideal for heavy-duty industrial, construction, and mobile equipment applications.

SAE 100 R8 Hose

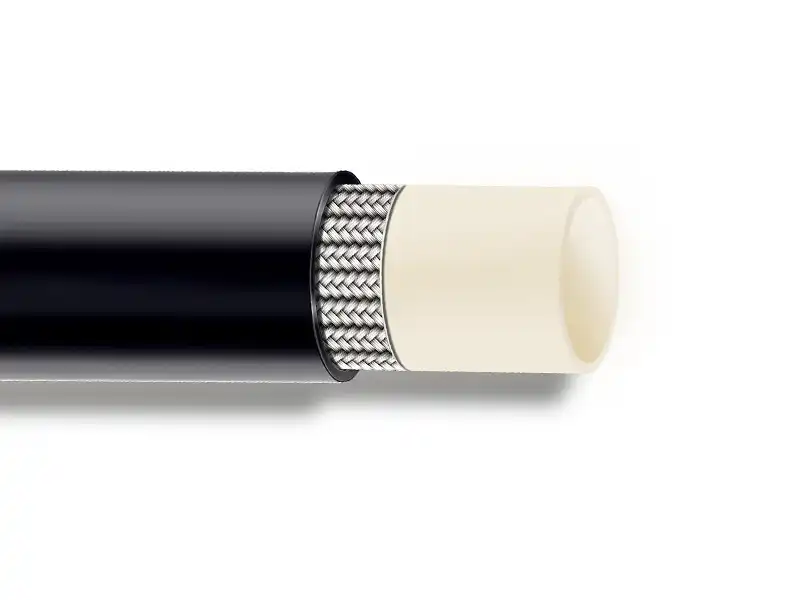

Aramid Fibre Braid Resin Hose SAE 100 R8

Tube: Oil resistant seamless PA tube

Reinforcement: one or two layers of high tensile aramid fibre braid

Cover: Black and high abrasion resistant PU

Temperature: -40℃ to +100℃ (-104℉ to +212℉)

Hydraulic Hose SAE100 R8 Application

Medium pressure hydraulic and pneumatic systems. Exceeds SAE100 R8. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.

Product Parameters

SAE 100 R8 Hose Specification

Metric Size	Inch Size	SAE Dash Size	I.D	O.D	Allowed Tolerance	Max W.P	Min B.P	Min B.R	W.T
Standard	Standard
mm	inche	dash	mm	mm	mm	mpa	psi	mpa	mm	g/m
6.3	1/4	04	6.3	12.3	±0.10	38	5440	150.0	40	90
8	5/16	05	7.9	14.3	±0.10	33	4710	130.0	45	115
10	3/8	06	9.5	16.7	±0.15	28	4060	112.0	60	145
12.5	1/2	08	12.7	19.8	±0.15	25	3620	100.0	80	205
16	5/8	10	15.9	24.5	±0.15	23	3260	90.0	120	290
19	3/4	12	18.9	28.0	±0.15	18	2540	70.0	140	345
25	1	16	25.4	34.0	±0.20	15	2170	60.0	160	450
